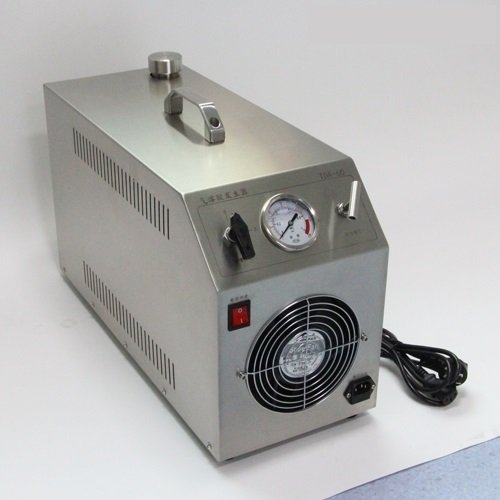

TDA-6C aerosol generator

$1,400.00

The aerosol generator is made of stainless steel, the regulating valve and switching valve are also both made of stainless steel, and the pressure gauge is an oil-filled anti-seismic pressure gauge. This product is an aerosol generator produced after a series of improvements. External power supply is required, and the PAO or DOP solution is atomized through 2 or 6 Laskin Nozzles nozzles to produce an aerosol of appropriate concentration.

The TDA-6C aerosol generator can generate aerosol particles of corresponding particle size and concentration between 10 and 100 micrograms per liter in airflows from 50 to 2,000 cubic feet per minute. The instrument is equipped with individual concentration controls, pressure controls and standard connector outputs. The TDA-6C aerosol generator is durable and easy to operate. It only requires voltage source to produce polydispersed suspended particles of different sizes.
This is a portable aerosol generator with a built-in compressed air source. Without the need for external air sources, aerosol PAO or DOP can be generated through 2-6 Laskin Nozzles. TDA-6C Aerosol Generator This is a portable aerosol generator with a built-in compressed air source. Aerosol PAO or DOP can be generated through 2-6 Laskin Nozzles without the need for external air sources. Clean workbench, clean room, HVAC system, HEPA filter, ULPA filter, operating room, nuclear filtration system, collection of protection filters, technology research and development
Technical Parameters
Available flow range                                              50-2,000cfm (1.4-56.6m3/min)
Occurrence concentration 10ug/L:                    Flow rate 2,000cfm (about 56m3/min)
100ug/L:                                                                  Flow rate 2,00cfm (about 5.6m3/min)
Particles                                                                   PAO, DOP, polydispersion occur
Occurrence method                                               2-6Laskin Nozzles
Compressed gas                                                      built-in air compressor
Power supply                                                           110-240V AC, 50/60Hz
Overall dimensions are approximately
Weight about                                                           25kg

Details

Weight 25 kg
Dimensions 54 × 28 × 20 cm
