Aerosol Generator

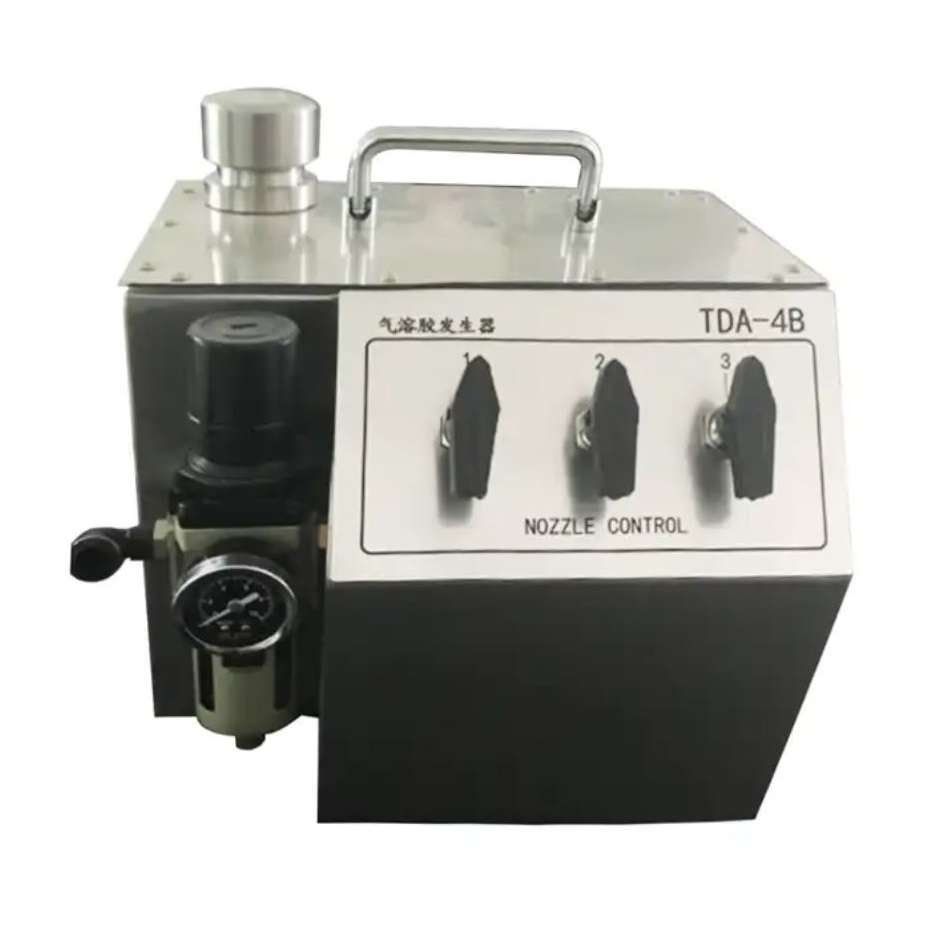

TDA-4B Portable Laskin Nozzle Atomized Aerosol Generator


The Laskin nozzle atomizer produces submicron oil mist suspended particles of various diameters at concentrations ranging from 10 to 100 micrograms per liter at flow rates ranging from 50 to 8,100 cubic feet per minute (pressure at 20 psi).
Suspended particle generators and photometers are used for integrity testing or leak source testing in highly efficient air filtration systems. Filter manufacturers use the device to scan ULPA and HEPA filters to validate their products. The filter demonstrator USES this device to verify that the filter has not been damaged in transit and is properly installed without any leakage.
With the right combination of suspended particle generators and photometers, some deficiencies of filters, such as pinholes, thin spots, gasket leakage, structural leakage or sealing problems, can be quickly and quantitatively detected and corrected to protect products and personnel.
The tda-4b suspension particle generator and tda-4b Lite features improvements in several areas, such as a rugged stainless steel construction, large loading ports, independent nozzle control, and a standard 3-inch sanitary connector output. An optional hose adapter is provided for importing suspended particles into the positive pressure system. The tda-4b is the company’s latest durable, lightweight, compact and compact aerosol generator. All it takes is a supply of clean compressed air to produce a variety of submicron particles.
The tda-4b aerosol generator has six nozzles, and when it is diluted at 20PSI into 810 cubic feet of air per minute, the gas concentration is about 100 micrograms per liter. Three valves allow the instrument to operate between one and six nozzles, providing a wide range of airborne particle concentrations.
【Product features】
1 Laskin Nozzle Way of producing dust
2 Manual adjustment
3 Large capacity load to produce dust
【Application environment】
clean bench Clean room HVAC system HEPA filter ULPA filter Operating room Nuclear filtration system
Pooling protection filter Research and development of science and technology
Air suspended particle output range
50-8,100 cubic feet per minute (1.4-229m3min)
Suspended particle concentration
100 micrograms per liter at 810 cubic feet per minute
Suspended particle concentration
10 micrograms per liter flow at 8,100 cubic feet per minute
Produce type                                                              1 to 6 Laskin Nozzle Nozzle
compressed air                                                          3 to 18 cubic feet per minute flow at 20 ps
In the particle                                                            PAO、DOP、polydispersion
Type of gas                                                                 Particles of various diameters (cold)
size                                                                               (25cm L X 28cm W X23cm H)
Weight                                                                         7.3KG
power supply                                                              Don’t need
