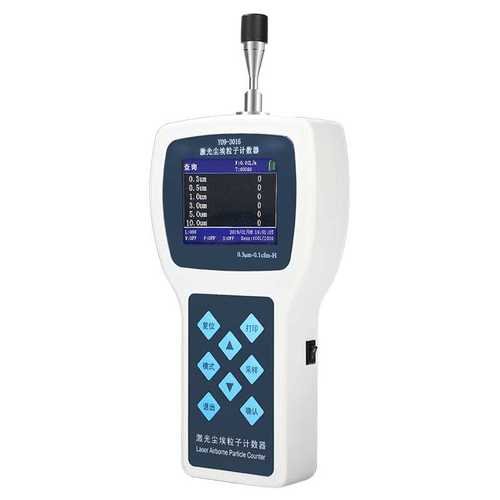

Y09-3016 Handheld Air Particle Counter



Y09-3016 Handheld Air Particle Counter is ergonomically designed to fit in the palm of your hand.The counter is very rugged and offers true portability while retaining the features and sensitivity of larger particle counters.


Outside Dim                300*360*126 mm3(Wide*Deep*High)
Display                              LCD
Weight                              0.6kg
Battery              (Lithium Ion Battery),7.2V,2200mAh
Power Source        Li-ion charger ,8.4V DC,1A:9-250V  AC, 50-60Hz
Size Channels                      0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate                            2.83L/min
Sample Time                             1s-99h
Cycles                              0-99
Hold Time                            0-999sec
Delay Time                            0-99sec
Light source                          Laser Diode
Zero Court                            <=10min
Alarm                 Low Battery ;100, 1000, 10000 Class /ISO
Coincidence Loss                   5%,2000000ps/cf
Operating Time                             5 hours
output                RS-232 to pc or printer via optional cable
Location Labels                                     0-999
Data Storage                          1000 Samples (With PC Software)
Environmental 10degrees celsius-40degrees celsius ; Humidity: 20%-90%             RH ;Atmosphere Pressure 86Kpa-106Kpa
Standard feathure         suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier
Optional component                              External printer
