Particle Counter

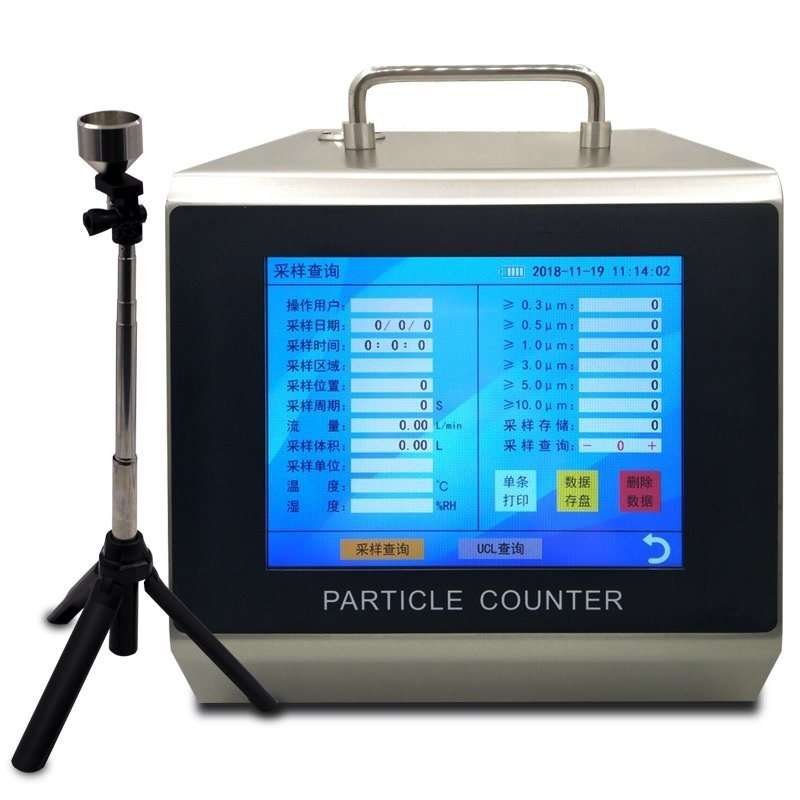

Y09-550 laser air particle counter


Why do I need a particle counter? Most cleanrooms require 3rd party certification at least once per year and use their own cleanroom for monthly or weekly checks.

1.Internal Printer
2.Easy to Read Display
3.Small Footprint
4.Internal Audible Alarm
Y09-550 advanced technical air dust laser particle counter
Y09-550 advanced technical air dust laser particle counter is used to measure the volume of air inside the clean environment of dust particles in size and number, can be directly detected cleanliness class A area, B-class area clean environment. Y09-550 laser particle counter use a semiconductor laser light source, a large touch-screen display, small size, light weight, high precision, features simple operation, microprocessor control, storage, printing the measurement results, the test environment is very clean convenient. In addition, special software can be downloaded via computer to store data. Our products are widely used in medicine, optical, chemical, food, cosmetics, e-health, biological products, aerospace and other sectors.
Detailed parameters:

Outside Dim                        320 * 272 * 240 mm3 (  Wide * High * Deep)
Display                                        Touch screen (LCD)
Weight  7.5Kg
Max. Consumption                                                   80W
Power Source          DC16.8V built-in lithium-ion battery (Built-in Lithium Battery)
Size Channels                                     0.5, 1, 3, 5, 10, 25 μm
Calculation 95% UCL calculation of particle concentration can be displayed directly
Flow Rate                                    50L/min import sampling pump
Sample Time                            Between 6 ~ 999999s optional (Selectable)
Zero Count                                     <=10min
Location Labels                                                0 -9999
Printer                                              Built-in thermal printer
Alarm                                                            Class
Date Storage 20000 Group / Section 300 UCL (with a PC dedicated communication software)
Output                                                           USB
Light Source         Laser Diode (30000 hours mean time between failures)
Maximum Rated Particle Concentration                                                  35000 particles / L
Operating Time                                                          5 hours
Environmental Temperature (Temperature): 10 ~ 35 degree celsius Humidity (Humidity): 20% ~ 75% RH Atmospheric pressure (Atmosphere Pressure): 86 ~ 106Kpa
