Nano Instrument


Factory: 00852-26756699

Particle Counter

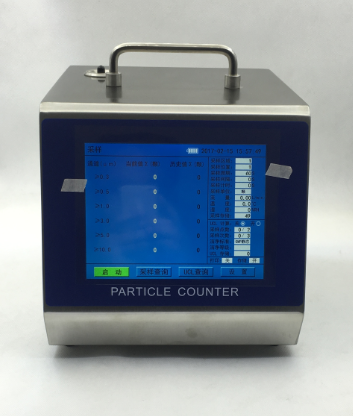

Nano 5100 28.3L Particle Counter


Besides being the best portable in the market, the Nano 5100 can be connected to a manifold and used in a real time monitoring system. Add a Scan Air Pro filter scanning probe and do filter integrity testing. High pressure gas adapters allow you to do particle testing in ultra-pure gasses. Integrate environmental sensors and you have the world‘s most versatile portable particle counter.
The Nano 5100 incorporates our extreme life laser diode technology sensor to produce the industry’s longest laser diode life of 20+ year MTTF (based on continuous 24/7 operation). Using a new, lighter extended-life battery and external AC adapter, the Nano 5100 is even more portable. The Nano 5100 features one of the industry’s best user interfaces (UI) to configure and operate the instrument with intuitive ICON-driven screens and menus that are simple and easy to learn and use.
The Nano 5100 can store up to 5,000 records of particle count data from up to 8 particle channels and the configurable recipe database . All data can be quickly and reliably transferred to a computer, a Facility Monitoring System or a Building Automation System.

Large Flow 28.3L Particle Counter Y09-510 AC-DC Laser Particle Counter Air Dust Particle Counter
Product Description:
Laser particle counter 28.3L/min is a kind of instrument used to measure the size and quantity of dust particles in unit volume air of clean environment, which can directly detect different class clean environment.
With features of using laser light source, large LCD touch- screen display, small size, light weight, high precision, simple operation, storing & printing the measurement results and so on, this product is widely used in electronics, optical, chemical, food, cosmetics, e-health, biological products, aerospace, etc.

1.Flow rate: 28.3L/min
2.AC DC power supply (Built-in lithium battery).
3.Stainless steel housing, easy to surface cleaning and disinfection.
4.Display six-channel particle sizes and particle concentration (pcs/m3).
5.Automatic UCL calculation (for the 2010 version of GMP, ISO14644-1)
6.95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter)
7.Channels: 0.5, 0.7, 1, 3, 5, 10 um
8.Zero count: ≤10min
9.Location labels: 0~9999
10.Print: Built-in Thermal Printer
11.Data storage: 5000 groups

Display LCD touch screen
Power Source AC 110- 220V,50-60HZ
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate 28.3L/min (Imported Pump)
Sample Time 1—10min (Selectable)
Zero Count &le 10min
Location Labels 0-999
Printer Built-in Thermal Printer
Alarm 100, 1000, 10000 Class
Data Storage 1000 Samples (With PC Software)
Light Source Laser Diode (30, 000 hours Mean Time Between Failures)
Maximum Rated Particle Concentration 35000 particles/L ( μm )
Operating Time 8 hours
Humidity 20%-75%RH
Atmosphere Pressure 86Kpa-106Kpa
