Particle Counter

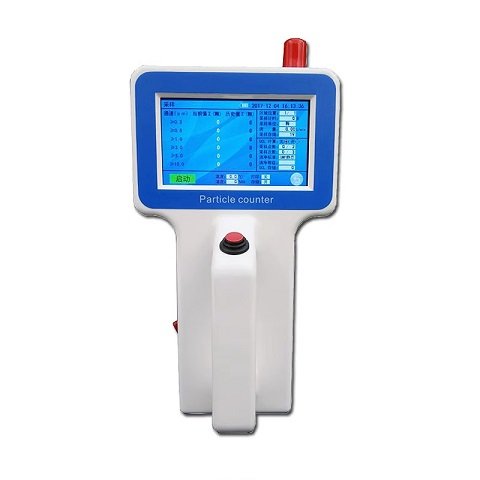

Handheld 5016 Airborne Particle Counter (0.5,0.7,1.0,3.0,5.0,10.0um,2.83L)


5016 Handheld Particle Counter measures 0.5 to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).
Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Nano data-download software.
Nano 5016 counters meet ISO 21501-4 and JIS B9921. The 5016 ensures compliance with an on-board pulse height analyzer.


Handheld 2.83L Airborne Particle Counter Dust Particle Counter For Clean Rooms

Technical Parameter 1. Self purification time ≤ 10min 2. Measurement repetition relative deviation ≤ ± 10% 3. Particle size distribution error 0.5um 5um ≤ ± 20% 4. Particle concentration indication error 0.5um ≤ ± 20% 5. Sampling flow rate and error: 2.83L/min ≤ ± 5% 6. Measurable particle size range: 0.5,0.7,1,3,5,10um, divided into 6 particle size channels, Maximum measurable particle concentration: ≤ 30K particles/L 8. Current DC7.2V, 1800mAh


Model Y09-5016
Flow rate 2.83L/MIN
Particle channels 0.5、0.7、1.0、3.0、5.0、10μm
Power supply AC :100V~245 V,50/60 Hz

DC:7.4 V,2200 mAh

Self-cleaning time ≤10 (min )
Display LCD touch screen display
Count mode Cumulative value, difference value, concentration value
Dimension 220×40×120(mm)
Weight 1 kg
