Particle Counter

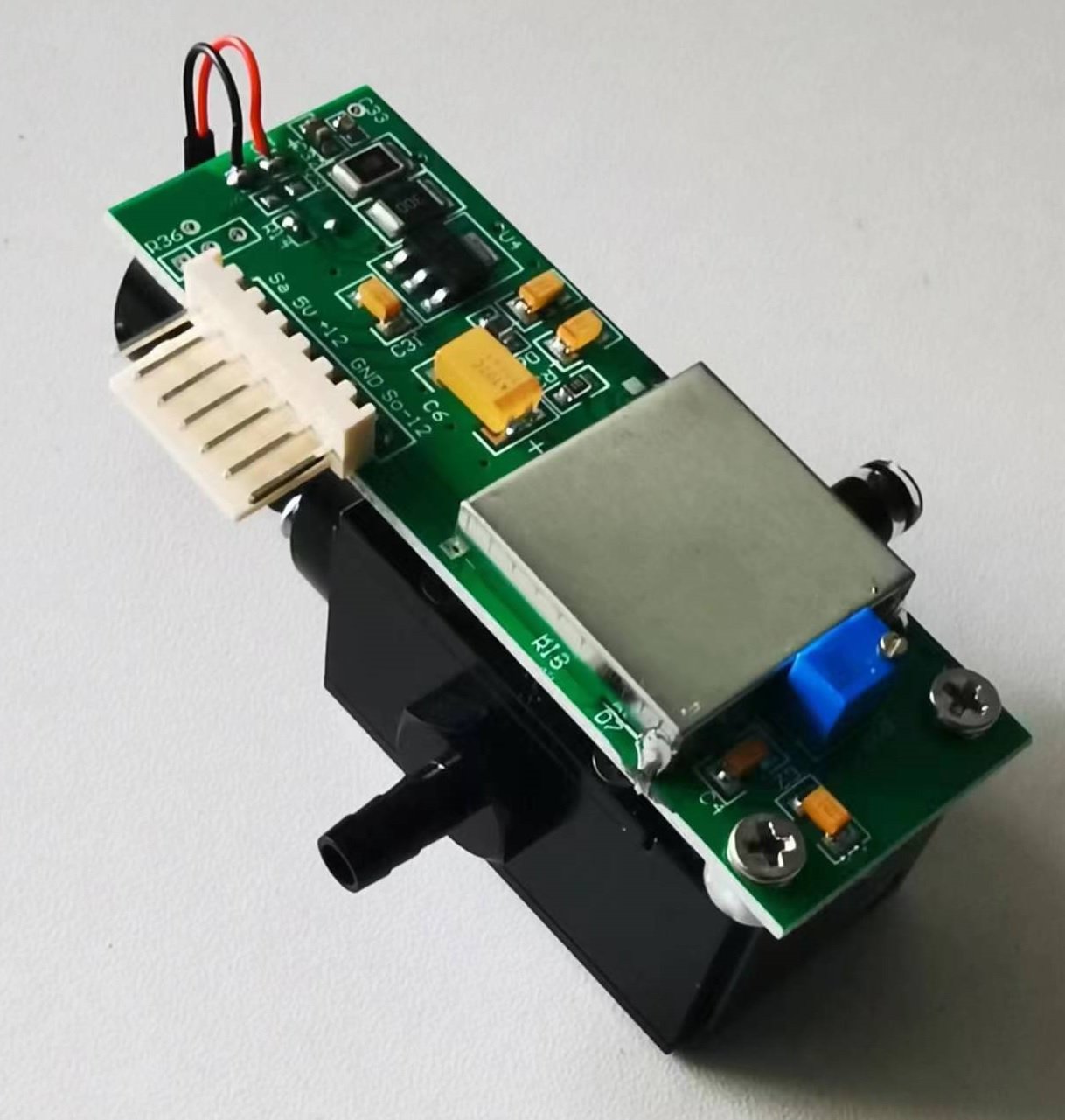

2.83LPM Laser Particle Count Sensor Module 3016

$258.00

Cleanroom optical particle counter sensor core module 3016 is based on laser scattering technology, which can accurately detect and calculate the number of suspended airborne particles with different particle sizes in the air. The sensor can simultaneously output quantity of particles in 6 channels including 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm and 10μm, perfect for clean room particle contamination monitoring.

Output particle number in 6 channels including 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm
Six channels can be measured
The sensor outputs signals to the microcontroller, analog signals
The peak voltages of the six particle sizes are
0.3μm——90MV,
0.5μm——160MV
1.0μm——490mv
3.0μm——830mv
5.0μm——3V
10μm——5v
This series of sensors is designed based on the principle of 90-degree directional light scattering when the gas to be measured passes through the sensor cavity. The scattered light generated by the particles passing through the laser beam is received by the photodetector, and the size of the particles is determined based on the intensity of the particle scattering signal.
High power industrial grade linear laser, accurate identification
Flexible to have a pump for sampling
Wide working temperature -30℃~70℃
With voltage regulator design and EMC compatibility, strong antistatic ability
Specifications
Operating principle Laser scattering
Measurement range 0~35,000 pcs/L
Output channels >0.3μm, >0.5μm, >1.0μm, >2.5μm, >5.0μm, >10μm
Resolution 1 pcs/2.83L
Reference instrument TSI 9306. TSI 9306 count efficiency 50% @ 0.3 µm and 100% for particles >0.45 µm)
Response time 0.5sec
Sampling flow rate 2.83 L/min
Working condition -30°C ~ 70°C, 0-95%RH (non-condensing)
Storage condition -40°C ~ 85°C, 0-95%RH (non-condensing)
Power supply DC 12V±0.1V
Working current <150mA
Standby current <25mA
Dimensions 90*30*28
Life span 5 years(continuous working)
Standard Comply with JJF 1190-2008,ISO21501
