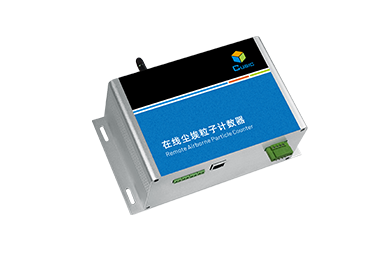

2.83LPM Online Particle Counter Nano-9306

$999.00

Cleanroom online particle counter Nano-9306 adopts Laser scattering technology, with a pump-suction sampling method and can accurately detect and calculate the number of suspended particles with different particle sizes in the air. The sensor can real time simultaneously output the quantity of particles in 6 channels including 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm and 10μm (PCS/m³, PCS/L or PCS/28.3L). It is a high performance-to-price ratio GMP airborne particle counter for clean room application.

Category

Features
4 in 1 integrated particle counter of particulate matter sensor, filter, flow sensor and pump
Output particle number (PCS/m³, PCS/L or PCS/28.3L) in 6 channels including 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm
Built-in high power industrial grade linear laser, accurate identification
Built-in pump and flow sensor for constant stable sampling
Wide working temperature -30℃~70℃, stable for different clean room application
With voltage regulator design and EMC compliant, strong anti-static ability
Modbus RS485,MQTT, 4-20mA output for online remote monitoring
Specifications
Operating principle Laser scattering
Output channels >0.3μm, >0.5μm, >1.0μm, >2.5μm, >5.0μm, >10μm
Measurement error
<100pcs/L: ±30pcs/L
>100pcs/L: ±30% of reading
Condition: 0C ~ 40C,50+10%RH (0°C ~ 40°C, 50 ±10%RH.
Reference instrument TSI 9306. TSI 9306 count efficiency 50% @ 0.3 µm and 100% for particles >0.45 µm)
Time to first reading ≤ 8s
Data refresh time 1s
Working condition -30°C ~ 70°C, 0 ~ 95%RH (Non-condensing)
Storage condition -40°C ~ 85°C, 0 ~ 95%RH (Non-condensing)
Power supply DC 12V, ripple wave < 50mV
Working current ≤1A
Communication interface RS485(Standard), RJ45(standard), 4-20mA(standard)
Life span ≥3 years
Sampling flow rate 2.83L/min (0.1CFM)
Work mode Adjustable(default: work 1 minutes and sleep 4 minutes)
