Particle Counter

Sale!

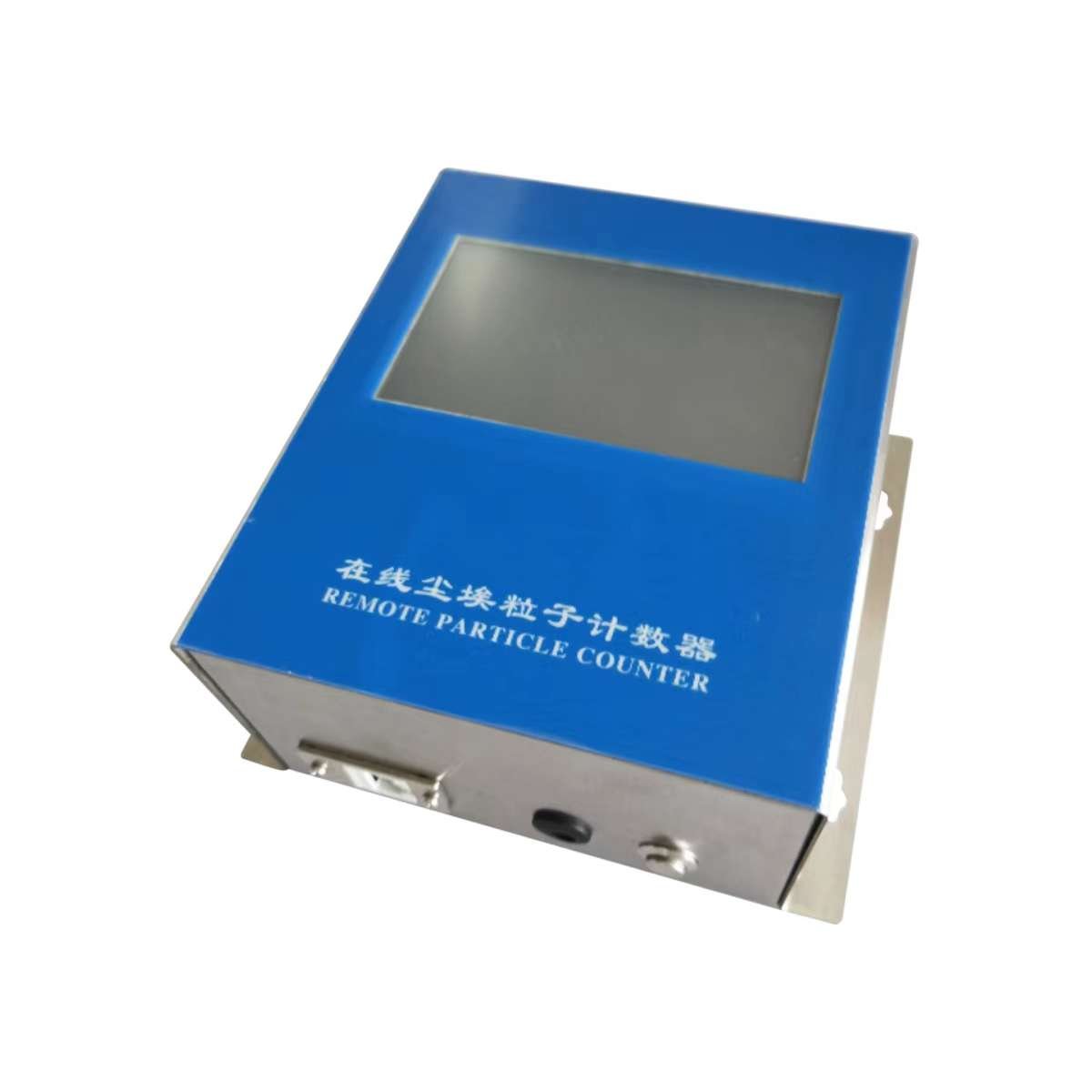

Nano 5501N (no pump) Remote Particle Counter (0.5 to 25 μm,0.1 CFM)

$1,500.00

Nano 5501N Remote Particle Counter is the most feature-advanced remote particle counter available. Integration is easy into a building automation and cleanroom management system via  RS485 .

The 5501N remote particle counters (no pump) display and report 6 user-selectable particle size channels, Nano 5501N require flow resource or external pump to suppy 0.1 cfm cleanroom sampler air.

Nano 5301 Remote Particle Counter is the most feature-advanced remote particle counter available. Integration is easy into a building automation and cleanroom management system via Ethernet, or RS485 .
The 5301 remote particle counters display and report 6 user-selectable particle size channels, a, serial number, laser on-time and date of manufacture for easy maintenance and warranty management.
Size Range                                               0.5 to 25 μm
Size Channels Factory calibrated at  Factory calibrated at 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm
Flow rates                                                0.1 CFM (2.83 LPM)
Concentration Limit                              15,000,000 Particles/ft³ @ 5% coincidence loss
Counting Efficiency                                50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Light Source                                             Long Life Laser Diode
Zero Count                                                <1 count / 60 minutes (<1 particles / 6 ft3). No fault count subtraction.
Count Modes                                             Automatic, manual, real-time meter, cumulative, count or concentration
Count Alarms                                            1 to 9,999,999 counts
Display                                                       4.3″ (10.9 cm) WQVGA (480×272) color touch screen
Number of Channels                                6
Custom Size Channels Calibration for custom size channels available
Airflow                                                         Internally monitored
Audible Alarm                                            Adjustable built-in alarm
Communication Modes                            Ethernet
Communication Modes                            RS485
Alarm Alarms                                             on counts for all particle sizes
Standards                                                    ISO 21501-4
Calibration Recommended                      minimum once per year
External Surface                                         Stainless steel
Dimensions (L x W x H)                           (15 cm x 7.5cm x 15 cm) includes barb fittings
Weight                                                          2.6 lb (1.18 kg)
Accessories                                                   Operating manual , isokinetic probe, power supply & cable,purge filter, data cable
Buffer Memory                                            1,000 sample records (rotating buffer) including particle count data
Sample Time                                                1 second to 99 hours
Power                                                             110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions                                 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions                                      32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
Warranty                                                        1 Years. Extended warranties available.

Details

Weight 1 kg
Dimensions 14 × 12 × 7 cm
