Five Elements of Laser Particle Counter

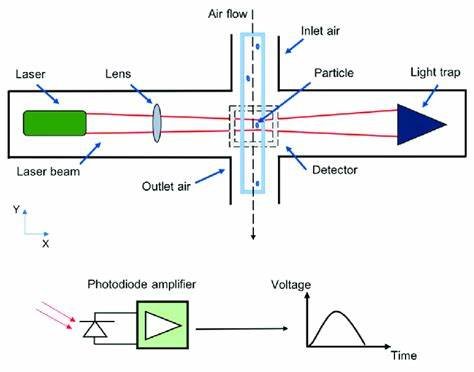

particle counter principle

Particle counters do just that: they count particles. They are used in cleanrooms to count and size the particles in the air so the cleanroom can stay in proper working function and meet crucial certification criteria. The fundamentals of particle counters are relatively simple. You need to know how and why they work. If you have a basic grasp of these fundamentals, you’ll be on your way to better understanding particle counters.
Anchor1. Particle Sizing And Why It Matters
Our particle counters detect some tiny particles. They are so small, the only way to detect them is through high-accuracy lasers, but we’ll get to that in a minute.
As an example, these are the sizes of some common particles:
Average human hair: 100 microns
Salt grain: 60 microns
Pollen: 15 microns
Bacteria: 5 microns
Viruses: 0.1 microns
COVID-19 virus: 0.06 to 0.14 microns
ISO 14644-1:2015 identifies particles as smaller than 0.1 microns as ultrafine particles and particles larger than 5 microns as macro-particles.
But advancing technologies, such as photography, are driving us to detect particles even smaller, such as those in the nanometer range. So we work every day on technology to detect these particles.
It’s critical to know the size of particles in your cleanroom for manufacturing, but also for certification. Cleanroom Certification requires a concentration of particles to be below accepted limits of a sample volume based on the Class of Cleanroom, particle size tested and the Cleanroom operation based on the number of HEPA filters, type of filter, and the number of air changes per hour.
Anchor2. Anatomy Of A Particle Counter
We use light scattering to detect and size particles. But it’s not a perfect science. That being said, it’s the best technology we have to date. So as you decide on where to source your particle counter or where to service it, make sure they are the ones setting industry standards and best practices.
Particle counters house a laser sensor block inside them that does the processing of the particles. This block contains the following elements:
Laser diode
Sample inlet
Sample exhaust
Sample view volume (the area where particles pass through the laser and scatter light)
Sensor cavity & optics
These components allow the particle counter to move air through the sensor block and detect the size of the particle through light scattering.
Anchor3. Fundamental Methods Particle Counters Use To Collect & Size Particles
Now that we know and understand what the inside of a particle counter looks like, we can recognize how the air is brought into the particle counter for evaluation. This is the key to understanding the fundamentals of particle counters.
Through the use of a pump, a vacuum is created that pulls in air from outside the particle counter. That vacuum pulls the air from the inlet through the laser diode and then out through the exhaust.
As the air passes through the inlet, it’s compressed so that we can get the most accurate light scattering reading possible.
When it passes through the diode, it reflects the light, causing light scattering. The larger the particle, the more light is reflected.
That’s where the photodetector comes into play.
The photodetector is what converts the light energy into a voltage signal. This way, we are able to quantify the physical size of the particle and present a particle count! Those are the fundamentals of how a particle counter works.
AnchorWant a real-world example of a similar physics phenomenon?
Think of the air like a half-full bucket of water.
You know there is half a gallon of water in the bucket.
When you place a bowling ball inside the water, the water level rises to ¾ of the bucket. You know there’s no more water than before in the bucket, but now it looks like the bucket has ¾ of a gallon of water – because the volume of the water was displaced.
Using a trusty formula from high school physics, you could calculate the object’s volume that displaced that volume of water.
The same principle applies in light scattering: we can tell the size of the particle by the amount of light displaced.
Anchor4. Where Particles Come From In A Cleanroom
If everything is working correctly, you shouldn’t be seeing many particles at all in your cleanroom. But they do get in there! How?
Personnel are the highest source of contaminants in cleanrooms, accounting for 75% to 80% of particles found. We shed skin, hair, and microorganisms constantly – even when we are sitting.
We shed about 40,000 skin cells every minute.
Even when we are stationary, we generate about 100,000 particles of 0.3 microns or larger.
When we’re moving, that number increases to more than 5,000,000.
(That’s a lot of potential contamination if guidelines are not strictly adhered to.)
Our gowns even have contamination – so the antiseptic gowning protocol is important. Often, people don’t gown properly, leaving skin around the wrist exposed. This is a huge risk within a cleanroom as bacteria and viable particles can be introduced into the environment.
While you’re in the cleanroom, the way you move and expose yourself is also incredibly important. Particles can even get through gowns so they are not guaranteed to protect the cleanroom from a person’s contaminants.
If the FDA or external auditors come into your cleanroom, the first thing they will do is check your personnel and the way they interact with the cleanroom.
So where else do particles come from?
They can come from the manufacturing equipment and its moving pieces.
Cleaning tools can generate or carry in particles.
Raw materials and products can create pieces (think about a glass vial breaking and the contamination that can come from that).
Anchor5. Key Things To Watch For In Your Particle Counter?
Technology always has limits and key factors to pay attention to. The following are some metrics that will need to be monitored and maintained in your particle counter to make sure they function properly.
AnchorConcentration Limit
As with all technology, there are known limits. In particle counters, this is the concentration limit.
If too many particles are counted, then the ability of the sensor to distinguish between one particle and multiple particles is diminished. This means it could read multiple particles as one larger particle.
Why does this matter? Well, you want to know accurately the size of the particles in your cleanroom. This matters for production, but also for certification.
But, in cleanrooms, concentration should remain low if particles are being kept out of the cleanroom. If everything is working correctly, you shouldn’t be seeing many particles at all.
AnchorFlow Rate
This is the volume of air or gas passing through the particle counter one unit at a time. This is dictated by the vacuum moving the air through the laser.
If the flow rate is too fast, the particle will reflect less light. This will result in the particle being counted as a small particle when it’s actually larger.
The same is true for the reverse: if the flow rate is too slow, the particle will reflect more light as it sits in the laser for a longer period of time. This will result in a large particle being recorded when it doesn’t actually exist.
AnchorChoosing Your Particle Counter
Depending on the size of your cleanroom and how many areas you need to test, there are numerous options for you to choose for your cleanroom. But we always recommend going with best practices and technology that sets industry standards, such as our real-time particle monitoring systems.
These systems will notify you immediately if something is amiss, which allows for less contamination and a quick response time. They are designed to keep you from experiencing reduced yield during production and optimizing your cleanroom.
